Product Description

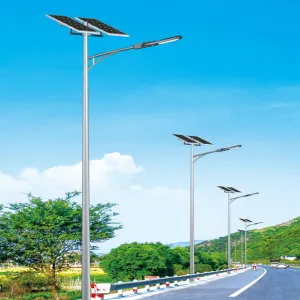

The Multi-Configuration Solar LED Street Light is a customizable Outdoor Lighting series designed for projects with different road widths, pole heights, lighting requirements and local solar conditions.

The system uses photovoltaic modules to generate electricity during the day. The energy is managed by an intelligent solar controller and stored in the battery system. After dark, the controller automatically supplies power to the LED luminaire according to the programmed lighting schedule.

Different LED luminaires, solar panel arrangements, pole structures and lighting arms can be combined within the same product series. This allows project designers and contractors to select an appropriate configuration without being limited to one fixed appearance or standard specification.

The series is suitable for new road construction, lighting upgrades and off-grid infrastructure projects where conventional underground cabling is unavailable, difficult to install or not economically practical.

Available Configurations

The product series can be supplied in several structural arrangements:

1.Single-arm Solar LED Street Light

2.Double-arm solar LED street light

3.Single-panel Solar Street Light

4.Dual-panel solar street light

5.Straight-pole solar street light

6.Curved-arm solar street light

7.Decorative solar LED street light

8.Customized Solar Street Lighting system

Pole height, LED power, solar panel capacity, battery storage and lighting control can be configured according to the project.

How the Solar Lighting System Works

1. Solar Energy Collection

During daylight hours, photovoltaic modules convert available sunlight into electrical energy.

2. Intelligent Charging

The solar controller manages the charging process and helps protect the battery system against unsuitable charging and discharging conditions.

3. Energy Storage

The generated electricity is stored in the battery system for use when natural light is insufficient.

4. Automatic LED Lighting

The controller automatically activates the LED luminaire after dark. Lighting time and power output can be adjusted according to the selected control program.

5. Optional Multi-Stage Dimming

The lighting system can be configured to operate at different brightness levels during different periods of the night, helping balance illumination and energy consumption.

Product Parameters

Parameter Note:

The specifications above represent recommended or available configurations rather than fixed parameters for every product. Final specifications must be confirmed according to the installation location, road width, required illumination, daily lighting time, local solar radiation and expected consecutive cloudy or rainy days.

Product Details

1. High-Efficiency LED Luminaire

The LED luminaire provides efficient road illumination with lower energy consumption than conventional outdoor light sources. Different power levels and optical distributions are available according to pole height, road width and lighting uniformity requirements.

2. Configurable Solar Panels

Monocrystalline or polycrystalline solar panels can be selected according to project requirements. Panel capacity, quantity, orientation and mounting angle are determined by the lighting load and local solar resources.

3. Intelligent MPPT Controller

The controller manages solar charging, battery operation and automatic LED lighting. Available functions can include overcharge protection, over-discharge protection, short-circuit protection, light control, time control and multi-stage dimming.

4. LiFePO4 Energy Storage

LiFePO4 batteries can be used to provide stable energy storage and support repeated charging cycles. Battery capacity is calculated according to LED power, required lighting time and backup-duration requirements.

5. Custom Lighting Arms

Single-arm and double-arm structures are available for different road layouts. Decorative or project-specific lighting arms can also be manufactured according to approved drawings.

6. Outdoor Lighting Pole

The Steel Pole can be hot-dip galvanized and optionally powder coated to improve corrosion resistance. Pole dimensions, wall thickness, flange plate and foundation details are confirmed according to the final system load and installation environment.

7. Modular Component Selection

The LED luminaire, solar panel, battery, controller and pole structure can be selected independently. This makes the series suitable for different project budgets, operating requirements and environmental conditions.

Features & Benefits

1. Multiple Structural Options

Different pole, arm, luminaire and solar panel arrangements are available within one coordinated product series.

2. Independent Off-Grid Lighting

The system generates and stores its own electricity, reducing dependence on conventional grid power in suitable projects.

3. Project-Specific System Design

LED power, panel capacity and battery storage are calculated according to the actual lighting requirements rather than using one configuration for every location.

4. Automatic Operation

The controller automatically manages charging and nighttime lighting, reducing the need for daily manual operation.

5. Energy-Saving Lighting Control

Time control and multi-stage dimming can reduce unnecessary energy consumption during low-traffic periods.

6. Flexible Road Lighting Layout

Single-arm and double-arm configurations can be selected for roadside, central-median or wider-road installation.

7. Reduced Cabling Requirements

Because the system operates independently, extensive underground power cabling is generally not required.

8. Custom Appearance

Pole shape, arm design, surface color and decorative elements can be adjusted to coordinate with the surrounding architecture or landscape.

Product Applications

The Multi-Configuration Solar LED Street Light can be used for:

1.Municipal roads and secondary streets

2.Rural roads and village lighting

3.Residential communities

4.Industrial parks and factory roads

5.Schools and university campuses

6.Parks and public outdoor spaces

7.Parking areas

8.Resort and hotel access roads

9.Remote infrastructure projects

10.Locations where grid connection is difficult

Customization Options

Baode Lighting can customize the following items:

LED luminaire power

Optical distribution

Pole height and diameter

Single-arm or double-arm structure

Solar panel type and capacity

Solar panel mounting arrangement

Battery type and capacity

Controller and dimming schedule

Backup lighting duration

Pole shape and decorative elements

Hot-dip galvanized or powder-coated finish

Custom pole color

Flange plate and anchor bolts

Foundation design

Project-specific packaging

Information Required for Configuration

To prepare a suitable solar street lighting proposal, please provide:

1.Project location

2.Road type and road width

3.Required pole height

4.Pole spacing

5.Required illumination level

6.Daily lighting hours

7.Dimming requirements

8.Local solar radiation conditions

9.Expected consecutive cloudy or rainy days

10.Required product quantity

11.Preferred pole style

12.Applicable project standards

FAQ

Q1: What does “multi-configuration” mean?

A1: It means the LED luminaire, solar panels, battery, controller, lighting arms and pole structure can be combined in different ways. The system is configured according to the road and project requirements instead of using one fixed specification.

Q2: How do I choose the correct LED power?

A2: LED power should be selected according to road width, pole height, pole spacing, required illumination and lighting uniformity. Baode Lighting can recommend a configuration after reviewing the project information.

Q3: Can the system operate during cloudy or rainy weather?

A3: Yes. The battery stores electricity generated during suitable daylight conditions. The available backup time depends on battery capacity, LED power, lighting schedule and local weather conditions.

Q4: Can the street light operate from dusk to dawn?

A4: Yes. Dusk-to-dawn operation can be configured when the solar panel and battery capacity are sufficient for the required LED power and local solar conditions.

Q5: Are single-arm and double-arm structures available?

A5: Yes. Single-arm configurations are commonly used for roadside installation, while double-arm configurations can be used for central medians or wider lighting areas.

Q6: Can the pole height and color be customized?

A6: Yes. Pole height, arm design, surface color and decorative details can be customized according to the approved project drawings.

Q7: Does the system require underground power cables?

A7: The solar LED street light is designed for independent operation, so conventional grid-power cabling is generally not required. A suitable concrete foundation and internal electrical connections are still necessary.

Q8: Can all configurations use the same battery and solar panel?

A8: No. Battery capacity and solar panel output must be calculated according to LED power, lighting time, local solar radiation and required backup duration.

Q9: What information is needed for a quotation?

A9: Please provide the project location, road width, pole height, lighting hours, required illumination, quantity and preferred product style. Local solar data is also helpful for determining the correct system capacity.

Q10: Can Baode Lighting provide customized project drawings?

A10: Yes. Technical drawings and system configurations can be prepared according to the confirmed project requirements and selected product structure.

Call to Action

Request a Customized Solar Street Lighting Solution

Send us your project location, road dimensions, required lighting hours and preferred pole style. Baode Lighting will recommend a suitable solar LED street light configuration for your project.
